After a half day packing and marking labels, TR Solids Control completed the production and trial assembly of 15pcs mud agitators in our workshop. Now they are ready for shipping out to equip the oil well drilling rigs in Middle East. The powers range from 5.5kw to 15kw. All of the agitators are coupling type with explosion-proof motors. Mud agitator is a kind of solids control equipment combined of reducer and explosion-proof motor. TR agitators are easy to maintain, and suitable for use in the field of harsh conditions.

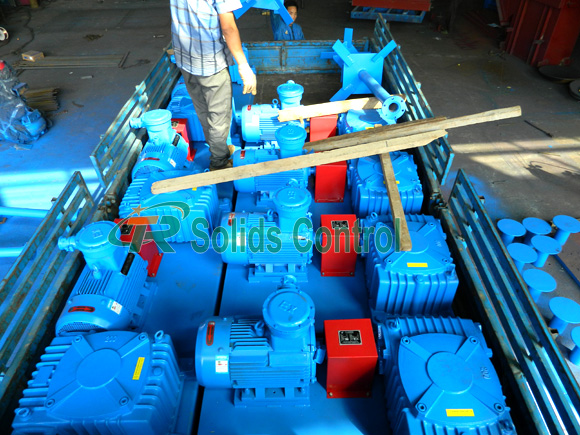

TR workers are loading mud agitators in the truck.
TR not only supply horizontal mud agitator, we but also produce vertical mud agitator. Below are the main technical sheet of our mud agitator.
Model | Motor Power | Impeller Speed | Impeller Diameter | Impeller Qty. | Explosion-proof Standard | Weight | Dimension |
TRJBQ3 | 3kw | 60/72r/min | 600mm | 1 |
ExdIIBt4/IECEX/A-TEX |
190kg | 909×525×527mm |
TRJBQ5.5 | 5.5kw | 600mm | 1 | 250kg | 1072×610×588mm | ||
TRJBQ7.5 | 7.5kw | 650mm | 2 | 380kg | 1157×670×607mm | ||
TRJBQ11 | 11kw | 800mm | 2 | 430kg | 1297×740×692mm | ||
TRJBQ15 | 15kw | 950mm | 2 | 480kg | 1330×890×747mm | ||
TRJBQ18.5 | 18.5kw | 1000mm | 2 | 740kg | 1510×890×753mm | ||
TRJBQ22 | 22kw | 1100mm | 2 | 780kg | 1529×890×753mm | ||
Remark | Above weight and dimension exclude mud agitator shaft. |
Mud agitators are ready for shipment in TR workshop.
Our mud agitator has a large agitation strength, wide spread, and can reduce starting torque. Currently TRJBQ series mud agitator is used in tunneling construction, oil & gas drilling, Drilling Waste Management, Coal Bed Gas Solids Control System, trenchless HDD, micro-tunneling, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, environment protection, Water Drilling etc.
TR Solids Control is one of the most famous International Brand for Mud Solids Control System & Shaker Screen. TR Solids Control Main Products: drilling mud shale shaker,mud decanter centrifuge,Mud Recycling System....ReadMore
